Jacobs R-755
| R-755 / L-4 | |
|---|---|
_(cropped).jpg)
| |

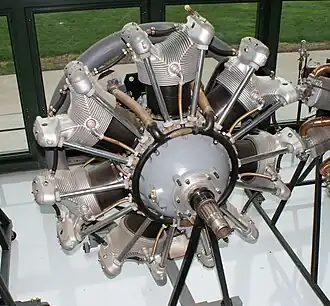

| Jacobs R-755 on display at the Evergreen Aviation & Space Museum | |
| Type | Radial engine |
| Manufacturer | Jacobs Aircraft Engine Company |
| First run | 1933 |
The Jacobs R-755 (company designation L-4) is a seven-cylinder, air-cooled, radial engine for aircraft manufactured in the United States by the Jacobs Aircraft Engine Company.[1]
Design and development
The R-755 was first run in 1933 and was still in production in the 1970s. With a bore and stroke of 5.25 in × 5 in (133 mm × 127 mm) the displacement was 757 cu in (12.4 L), power ranged from 200 hp to 350 hp (150 kW - 260 kW). The engine features steel cylinders with aluminum-alloy cylinder heads. An R-755E variant was developed for use in helicopters.
Variants
- R-755A1
- The base-line direct drive production version.[2]
- R-755A2
- 300 hp variant.
- R-755A3
- Similar to A1 but with Scintilla magnetoes.
- R-755B1
- De-rated version of the R-755A to drive a fixed pitch airscrew.[2]
- R-755B2
- De-rated version of the R-755A to drive a variable or controllable pitch airscrew.[2]
- R-755E
- Up-rated engine with reduction gearing.[2]
- R-755EH
- Developed to power the Jacobs Type 104 Gyrodyne.[2]
Applications
.jpg)
- Anahuac Tauro
- Beechcraft Model 17 Staggerwing (B17L, C17L, E17L)
- Boeing-Stearman PT-18 Kaydet
- Cessna AT-17 Bobcat
- Cessna 195
- Funk F-23
- Grumman G-164 Ag Cat
- Kellett KD-1
- Lascurain Aura
- Morane-Saulnier MS.505 Criquet
- Waco F series (YMF, YPF)
- Waco Custom Cabin series (YOC, YQC)
- Waco Standard Cabin series (YKC, YKC-S, YKS-6)
- Waco PG-3 (twin-engined powered version of Waco CG-15 glider, prototype only)
Engines on display
- A preserved Jacobs R-755 is on display at the Arkansas Air Museum.[3]
- A Jacobs R-755 is on public display at the Aerospace Museum of California
- A preserved Jacobs R-755 is on display at Super T Aviation Academy in Medicine Hat, Canada.
- A restored Jacobs R-755A is on display at the House of Whitley.
Specifications (R-755-A1)
Data from Jane's fighting aircraft of World War II,[4] Jane's all the World's Aircraft 1938[5]
General characteristics
- Type: 7-cylinder air-cooled radial piston engine
- Bore: 5.25 in (133 mm)
- Stroke: 5 in (130 mm)
- Displacement: 757 cu in (12.4 L)
- Length: 37 in (940 mm) overall
- Diameter: 43.5 in (1,100 mm)
- Dry weight: 505 lb (229 kg)
Components
- Valvetrain: 2 valves per cylinder, pushrod-actuated, sodium-cooled exhaust valves
- Fuel system: Single Stromberg NA-R7A carburetor
- Fuel type: 73 octane
- Oil system: One pressure pump, two scavenge pumps
- Cooling system: Air-cooled
- Reduction gear: Direct drive, right hand tractor
Performance
- Power output: 225 hp (168 kW) at 2,000 rpm at sea level
- Specific power: 0.32 hp/cu-in (14.8 kW/L)
- Power-to-weight ratio: 0.48 hp/lb (0.8 kW/kg)
