Chinese frigate Binzhou

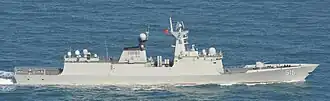

	Binzhou underway on 26 March 2020
History
China
Name	Binzhou
Namesake	Binzhou; (滨州);
Builder	Hudong–Zhonghua Shipbuilding, Shanghai
Launched	13 December 2015
Commissioned	29 December 2016
Homeport	Zhoushan, Zhejiang
Identification	Pennant number: 515
Motto	勇武至诚，精武制胜 (Be brave and sincere, elitely achieve victory)
Status	Active
Badge
General characteristics
Class & type	Type 054A frigate
Displacement	4,053 tonnes (full)
Length	134.1 m (440 ft)
Beam	16 m (52 ft)
Propulsion	CODAD, 4 × Shaanxi 16 PA6 STC diesels, 5700 kW (7600+ hp @ 1084 rpm) each
Speed	27 knots estimated
Range	8,025 nautical miles (9,235 mi; 14,862 km) estimated
Complement	165
Sensors &; processing systems	Type 382 Radar; Type 344 Radar (Mineral-ME Band Stand) OTH target acquisition and SSM fire control radar; 4 × Type 345 Radar(MR-90 Front Dome) SAM fire control radars; MR-36A surface search radar, I-band; Type 347G 76 mm gun fire control radar; 2 × Racal RM-1290 navigation radars, I-band; MGK-335 medium frequency active/passive sonar system; H/SJG-206 towed array sonar; ZKJ-4B/6 (developed from Thomson-CSF TAVITAC) combat data system; HN-900 Data link (Chinese equivalent of Link 11A/B, to be upgraded); SNTI-240 SATCOM; AKD5000S Ku band SATCOM;
Electronic warfare; & decoys	Type 922-1 radar warning receiver; HZ-100 ECM & ELINT system; Kashtan-3 missile jamming system;
Armament	1 × 32-cell VLS; HQ-16 SAM; Yu-8 anti submarine rocket launcher; 2 × 4 C-803 anti-ship / land attack cruise missiles; 1 × PJ26 76 mm dual-purpose gun; 2 × Type 730 7-barrel 30 mm CIWS guns or Type 1130; 2 × 3 324mm Yu-7 ASW torpedo launchers; 2 × 6 Type 87 240mm anti-submarine rocket launcher (36 rockets carried); 2 × Type 726-4 18-tube decoy rocket launchers;
Aircraft carried	1 Kamov Ka-28 'Helix' or Harbin Z-9C
Aviation facilities	hangar

Binzhou (515) is a Type 054A frigate of the People's Liberation Army Navy. She was commissioned on 29 December 2016. She is stationed in Zhoushan, Zhejiang.^[1] She is part of the East Sea Fleet.^[2]

Development and design

The Type 054A carries HQ-16 medium-range air defence missiles and anti-submarine missiles in a vertical launching system (VLS) system. The HQ-16 has a range of up to 50 km, with superior range and engagement angles to the Type 054's HQ-7. The Type 054A's VLS uses a hot launch method; a shared common exhaust system is sited between the two rows of rectangular launching tubes.^[3]

The four AK-630 close-in weapon systems (CIWS) of the Type 054 were replaced with two Type 730 CIWS on the Type 054A. The autonomous Type 730 provides improved reaction time against close-in threats.^[4]

Construction and career

Binzhou was launched on 13 December 2015 at the Hudong-Zhonghua Shipyard in Shanghai. Commissioned on 29 December 2016.^[5]

She was part of the 29th Escort Task Group in the Gulf of Aden, being deployed on April 4, 2018,^[6] and had a stopover in the Port of Piraeus, where she was visited by the then Chinese ambassador to Greece Zou Xiaoli on June 1st.^[7]

Gallery

Binzhou underway on 5 April 2018.
Binzhou underway on 30 May 2019.
